FortiSwitch - Ethernet Access and Data Center Switches


Fortinets FortiSwitch Gigabit Ethernet Switch Familie mit 10 Gigabit Ethernet Uplinks bietet hohe Performanz und Skalierbarkeit zu einem günstigen Preis. Die FortiSwitch Plattform ist für High-Performance Computing (HPC) entwickelt worden und bietet dabei Einsatzmöglichkeiten für jede Umgebung - von Small Office bis hin zum Data Center.

Zusammen mit den FortiGate Security-Appliances ermöglicht die "FortiSwitch Secure Access" & "Secure Campus Switches" der IT die Erzeugung einer sicheren Netzwerkgrenze im Unternehmen. Geräte, die sich von ausserhalb verbinden, werden zuerst identifiziert, und der Nutzer wird authentifiziert. Nach erfolgreicher Authentifizierung gelten für die Nutzung des Gerätes entsprechende, von der IT definierte Sicherheitsregeln. So entsteht eine sichere Netzwerkgrenze. Die FortiSwitch-Plattformen wurden speziell für die Anforderungen der Ethernet-Infrastruktur und Zugriffsmöglichkeiten in modernen Netzwerken entwickelt. Dank der hohen Benutzerfreundlichkeit ist eine Skalierung nach Ihren Anforderungen jederzeit möglich.

Bitte beachten Sie unseren BOLL Tech Blog: Fortinet FortiSwitch FAQ
FortiSwitch Secure Access

Model Numbers

100E Series: FS-108E-POE, FS-108E-FPOE, FS-124E, FS-124E-POE, FS-124E-FPOE, FS-148E, FS-148E-POE Achtung: unterstützt kein MC-LAG!
100F Series: FS-108F, FS-108F-POE, FS-108F-FPOE, FS-124F, FS-124F-POE, FS-124F-FPOE, FS-148F, FS-148F-POE, FS-148F-FPOE Achtung: unterstützt kein MC-LAG!
200 Series: FS-224D-FPOE, FS-224E, FS-224E-POE, FS-248D, FS-248E-POE, FS-248E-FPOE

FortiSwitch-108E-POE

Switching Throughput Total Network Interfaces POE Ports Powerbudget
20 Gbps 8x GE RJ45 ports and 2x GE SFP ports, Fanless 4 (802.3af/at) 65 Watt
FortiSwitch-108E-FPOE

Switching Throughput Total Network Interfaces POE Ports Powerbudget
20 Gbps 8x GE RJ45 ports and 2x GE SFP ports, Fanless 8 (802.3af/at) 130 Watt

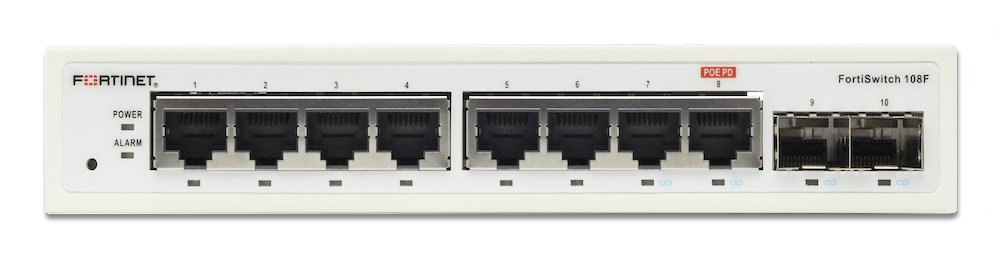

FortiSwitch-108F   Neueste Hardware Generation

Switching Throughput Total Network Interfaces POE Ports Powerbudget
20 Gbps 7x GE RJ45 ports, 1x GE/POE-PD RJ45 ports and 2x GE SFP ports - -

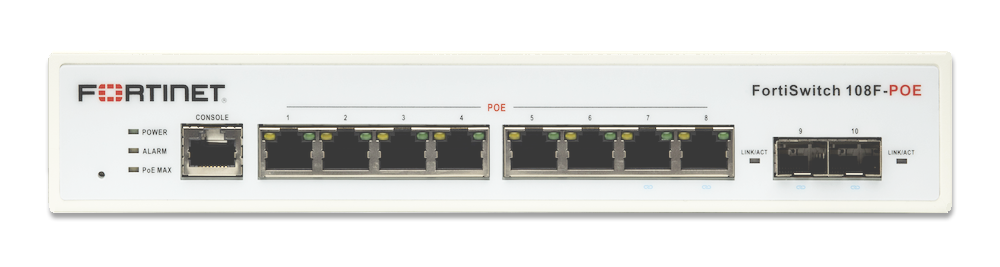

FortiSwitch-108F-POE   Neueste Hardware Generation

Switching Throughput Total Network Interfaces POE Ports Powerbudget
20 Gbps 8x GE RJ45 ports and 2x GE SFP ports 8 (802.3af/at) 65 W

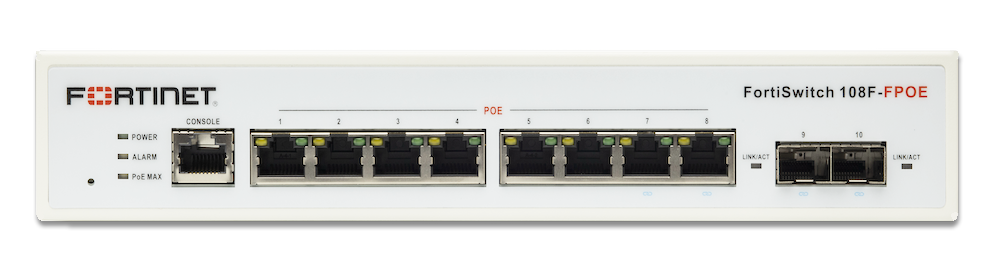

FortiSwitch-108F-FPOE   Neueste Hardware Generation

Switching Throughput Total Network Interfaces POE Ports Powerbudget
20 Gbps 8x GE RJ45 ports and 2x GE SFP ports 8 (802.3af/at) 130 W
FortiSwitch-124E   Neueste Hardware Generation

Switching Throughput Total Network Interfaces
56 Gbps 24x GE RJ45 ports and 4x GE SFP ports
FortiSwitch-124E-POE   Neueste Hardware Generation

Switching Throughput Total Network Interfaces POE Ports Powerbudget
56 Gbps 24x GE RJ45 ports and 4x GE SFP ports 12 (802.3af/at) 185 Watt
FortiSwitch-124E-FPOE   Neueste Hardware Generation

Switching Throughput Total Network Interfaces POE Ports Powerbudget
56 Gbps 24x GE RJ45 ports and 4x GE SFP ports 24 (802.3af/at) 370 Watt

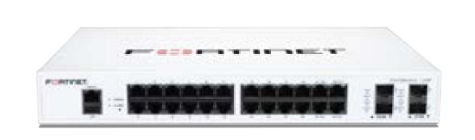

FortiSwitch-124F   Neueste Hardware Generation

Switching Throughput Total Network Interfaces
128 Gbps 24x GE RJ45 ports and 4x 10GE SFP+ ports

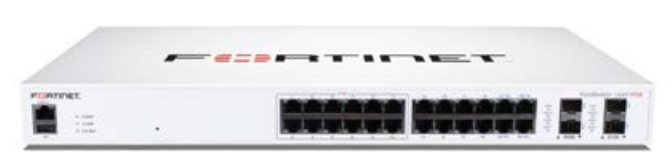

FortiSwitch-124F-POE   Neueste Hardware Generation

Switching Throughput Total Network Interfaces POE Ports Powerbudget
128 Gbps 24x GE RJ45 ports and 4x 10GE SFP+ ports 12 (802.3af/at) 185 Watt

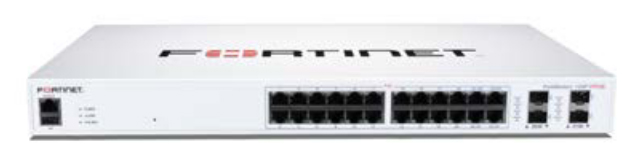

FortiSwitch-124F-FPOE   Neueste Hardware Generation

Switching Throughput Total Network Interfaces POE Ports Powerbudget
128 Gbps 24x GE RJ45 ports and 4x 10GE SFP+ ports 24 (802.3af/at) 370 Watt
FortiSwitch-148E   Neueste Hardware Generation

Switching Throughput Total Network Interfaces
104 Gbps 48x GE RJ45 ports and 4x GE SFP ports
FortiSwitch-148E-POE   Neueste Hardware Generation

Switching Throughput Total Network Interfaces POE Ports Powerbudget
104 Gbps 48x GE RJ45 ports and 4x GE SFP ports 24 (802.3af/at) 370 Watt
FortiSwitch-148F   Neueste Hardware Generation

Switching Throughput Total Network Interfaces
176 Gbps 48x GE RJ45 ports and 4x 10GE SFP+ ports

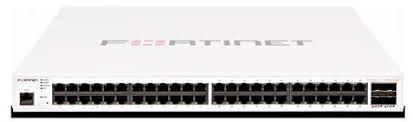

FortiSwitch-148F-POE   Neueste Hardware Generation

Switching Throughput Total Network Interfaces POE Ports Powerbudget
176 Gbps 48x GE RJ45 ports and 4x 10GE SFP+ ports 24 (802.3af/at) 370 Watt
FortiSwitch-148F-FPOE   Neueste Hardware Generation

Switching Throughput Total Network Interfaces POE Ports Powerbudget
176 Gbps 48x GE RJ45 ports and 4x 10GE SFP+ ports 48 (802.3af/at) 740 Watt

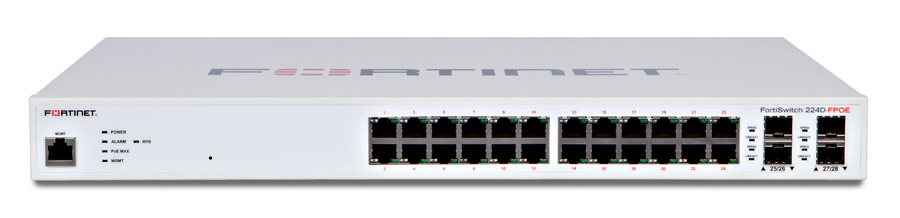

FortiSwitch-224D-FPOE   Neueste Hardware Generation

Switching Throughput Total Network Interfaces POE Ports Powerbudget
56 Gbps 24x GE RJ45 ports and 4x GE SFP ports 24 370 Watt

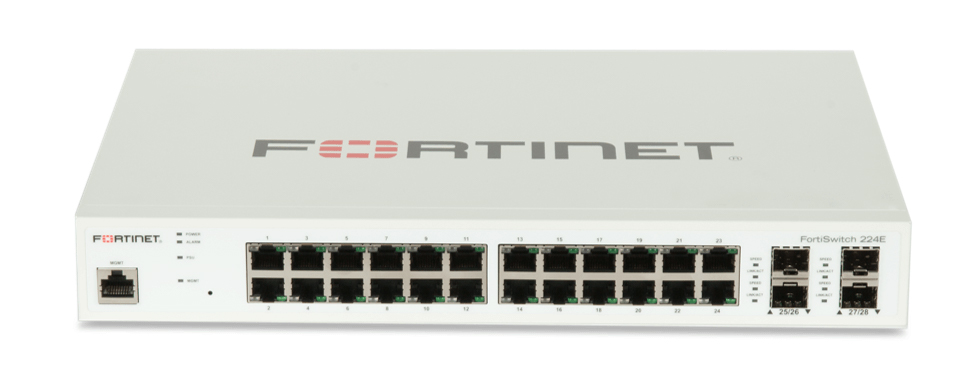

FortiSwitch-224E   Neueste Hardware Generation

Switching Throughput Total Network Interfaces
56 Gbps 24x GE RJ45 ports and 4x GE SFP ports

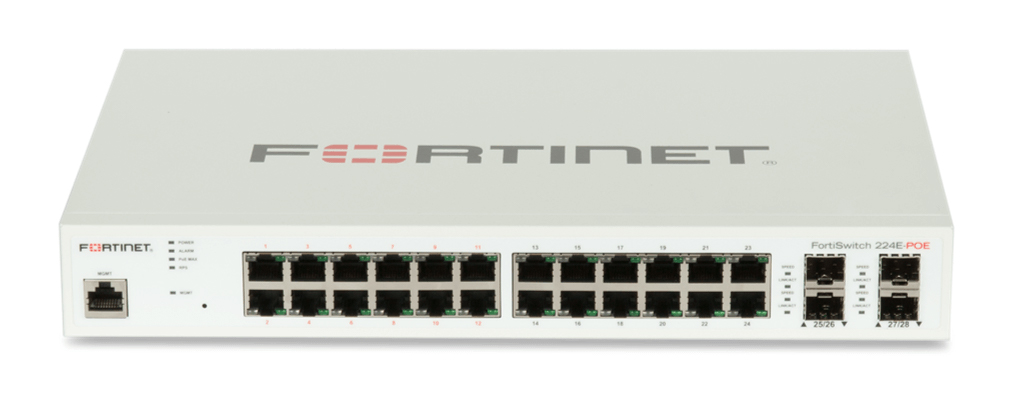

FortiSwitch-224E-POE   Neueste Hardware Generation

Switching Throughput Total Network Interfaces POE Ports Powerbudget
56 Gbps 24x GE RJ45 ports and 4x GE SFP ports 12 180 Watt

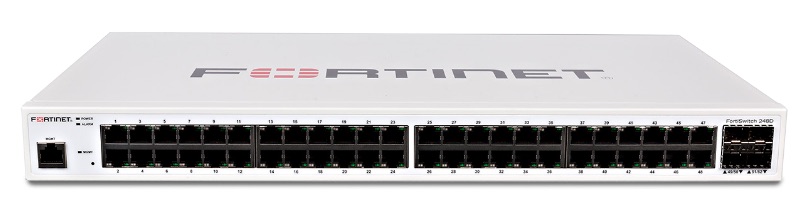

FortiSwitch-248D   Neueste Hardware Generation

Switching Throughput Total Network Interfaces
104 Gbps 48x GE RJ45 ports and 4x GE SFP ports

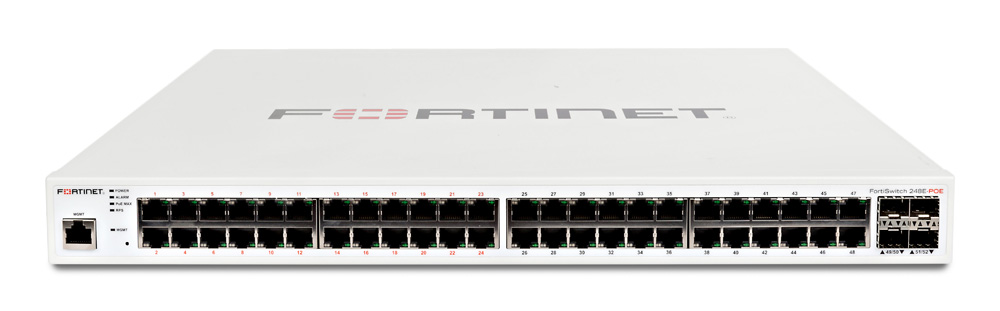

FortiSwitch-248E-POE   Neueste Hardware Generation

Switching Throughput Total Network Interfaces POE Ports Powerbudget
104 Gbps 48x GE RJ45 ports and 4x GE SFP ports 24 370 Watt
FortiSwitch-248E-FPOE   Neueste Hardware Generation

Switching Throughput Total Network Interfaces POE Ports Powerbudget
104 Gbps 48x GE RJ45 ports and 4x GE SFP ports 48 740 Watt
FortiSwitch Secure Campus

Model Numbers

400 Series: FS-424E-FIBER, FS-M426E-FPOE, FS-424E, FS-424E-POE, FS-424E-FPOE, FS-448E, FS-448E-POE, FS-448E-FPOE
500 Series: FS-524-D, FS-524D-FPOE, FS-548D, FS-548D-FPOE
600 Series: FS-624F, FS-624F-FPOE, FS-648F, FS-648F-FPOE

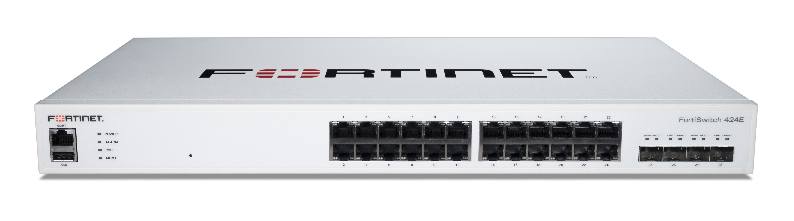

FortiSwitch-424E   Neueste Hardware Generation

Switching Throughput Total Network Interfaces
128 Gbps 24x GE RJ45 and 4x10 GE SFP+ ports

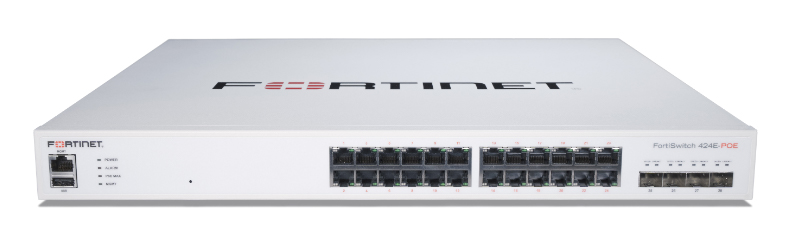

FortiSwitch-424E-POE   Neueste Hardware Generation

Switching Throughput Total Network Interfaces POE Ports Powerbudget
128 Gbps 24x GE RJ45 and 4x10 GE SFP+ ports 24 250 Watt

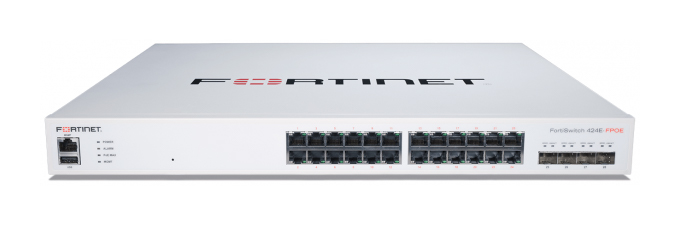

FortiSwitch-424E-FPOE   Neueste Hardware Generation

Switching Throughput Total Network Interfaces POE Ports Powerbudget
128 Gbps 24x GE RJ45 and 4x10 GE SFP+ ports 24 421 Watt

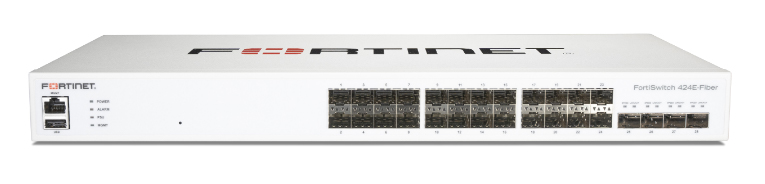

FortiSwitch-424E-FIBER   Neueste Hardware Generation

Switching Throughput Total Network Interfaces
128 Gbps 24x GE SFP and 4x 10GE SFP+ ports

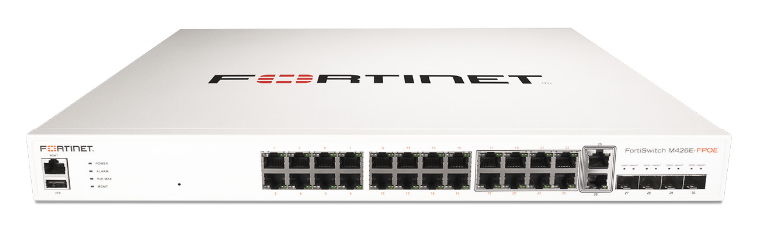

FortiSwitch-M426E-FPOE   Neueste Hardware Generation

Switching Throughput Total Network Interfaces POE Ports Powerbudget
172 Gbps 16x GE RJ45, 8x 2.5 GE RJ45 ports, 2x 5 GE RJ45 and 4x 10 GE SFP+ ports 24 420 Watt
FortiSwitch-524D   Neueste Hardware Generation

Switching Throughput Total Network Interfaces
288 Gbps 24x GE RJ45 ports, 4x 10 GE SFP+ ports, 2x 40 GE QSFP
FortiSwitch-524D-FPOE   Neueste Hardware Generation

Switching Throughput Total Network Interfaces POE Ports Powerbudget
288 Gbps 24x GE RJ45 ports, 4x 10 GE SFP+ ports, 2x 40 GE QSFP 24 400 Watt

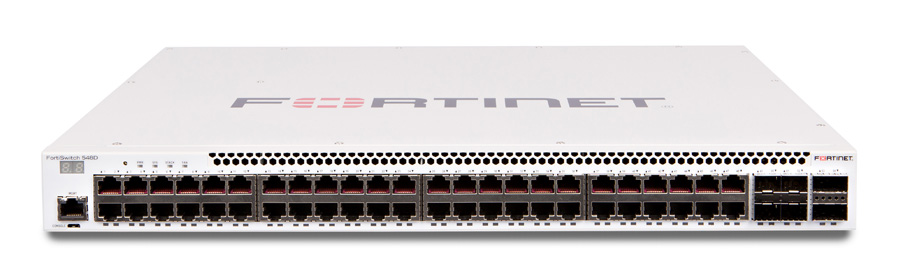

FortiSwitch-548D   Neueste Hardware Generation

Switching Throughput Total Network Interfaces
336 Gbps 48x GE RJ45 ports, 4x 10 GE SFP+ ports, 2x 40 GE QSFP
FortiSwitch-548D-FPOE   Neueste Hardware Generation

Switching Throughput Total Network Interfaces POE Ports Powerbudget
336 Gbps 48x GE RJ45 ports, 4x 10 GE SFP+ ports, 2x 40 GE QSFP 48 750 Watt

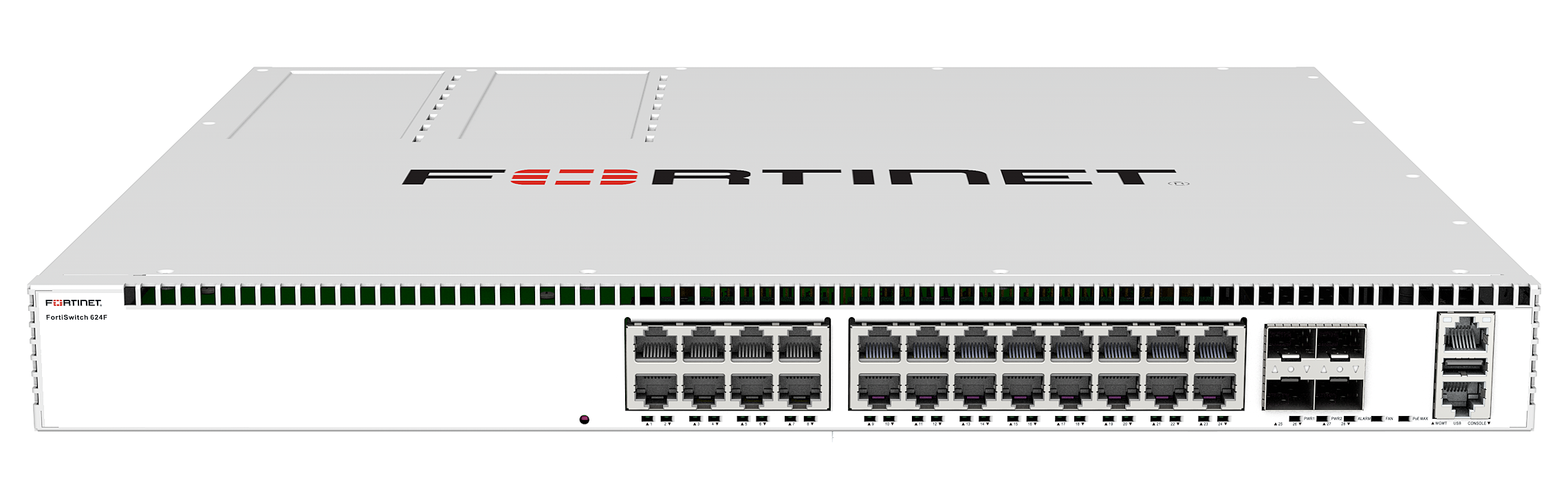

FortiSwitch-624F   Neueste Hardware Generation

Switching Throughput Total Network Interfaces
440 Gbps 24x 1GE/2.5GE/5GE RJ45 ports, 4x 10GE/25GE SFP+/SFP28 ports
FortiSwitch-624F-FPOE   Neueste Hardware Generation

Switching Throughput Total Network Interfaces POE Ports Powerbudget
440 Gbps 24x 1GE/2.5GE/5GE RJ45 ports (802.3 af/at/bt type 4), 4x 10GE/25GE SFP+/SFP28 ports 24 1440 Watt

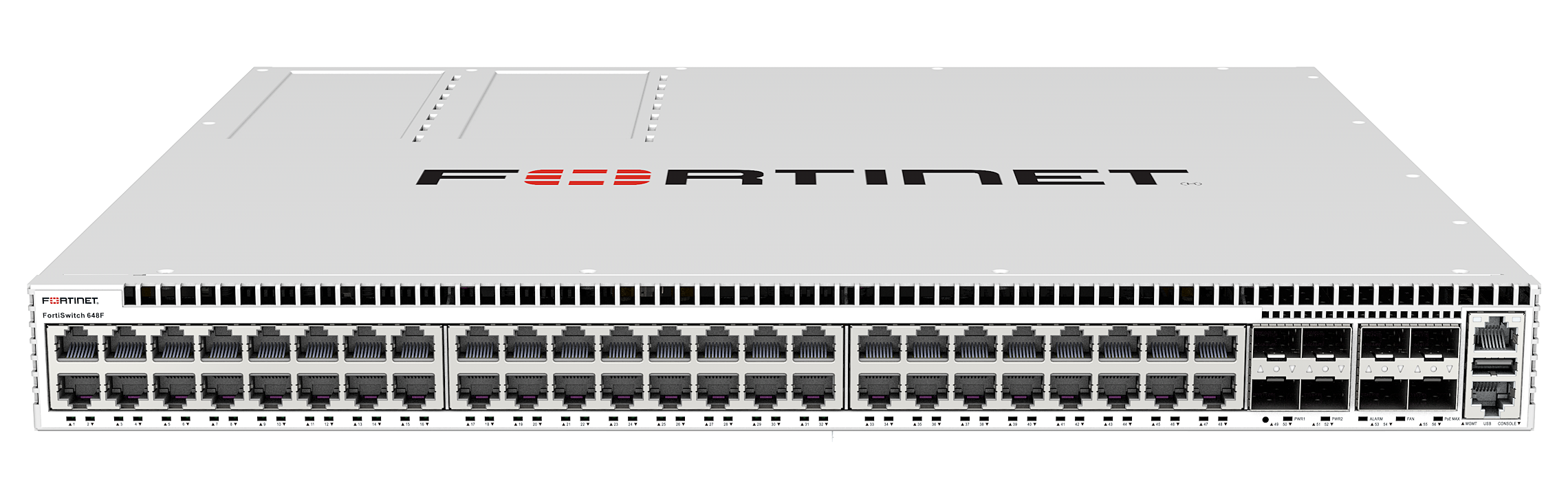

FortiSwitch-648F   Neueste Hardware Generation

Switching Throughput Total Network Interfaces
720 Gbps 32x 1GE/2.5GE, 16x 1GE/2.5GE/5GE RJ45 ports, 8x 10GE/25GE SFP+/SFP28 ports
FortiSwitch-648F-FPOE   Neueste Hardware Generation

Switching Throughput Total Network Interfaces POE Ports Powerbudget
720 Gbps 32x 1GE/2.5GE, 16x 1GE/2.5GE/5GE RJ45 ports (802.3 af/at/bt type 4), 8x 10GE/25GE SFP+/SFP28 ports 48 1800 Watt
FortiSwitch Campus Core and Data Center

FortiSwitch-1024D

Switching Throughput Total Network Interfaces
480 Gbps 24 x GE/10GE SFP+ ports

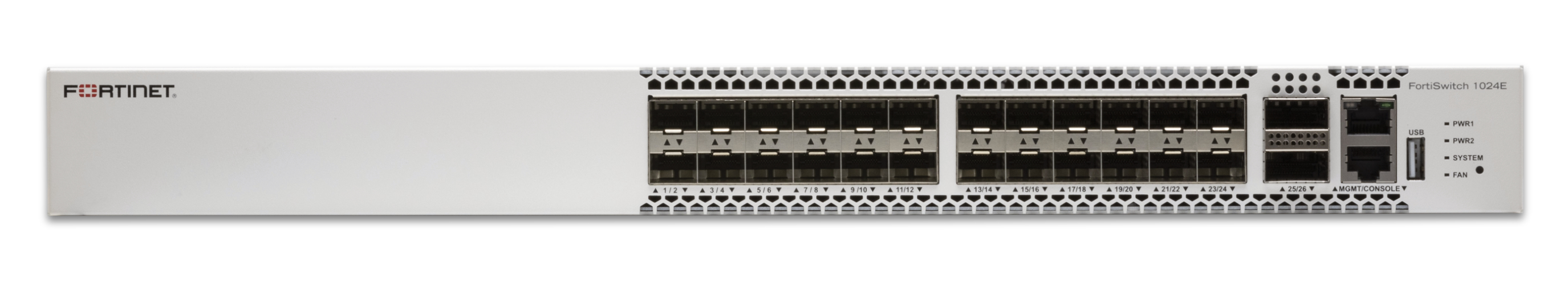

FortiSwitch-1024E   Neueste Hardware Generation

Switching Throughput Total Network Interfaces
880 Gbps 24x 10GE SFP+ ports and 2x 100GE QSFP28 ports

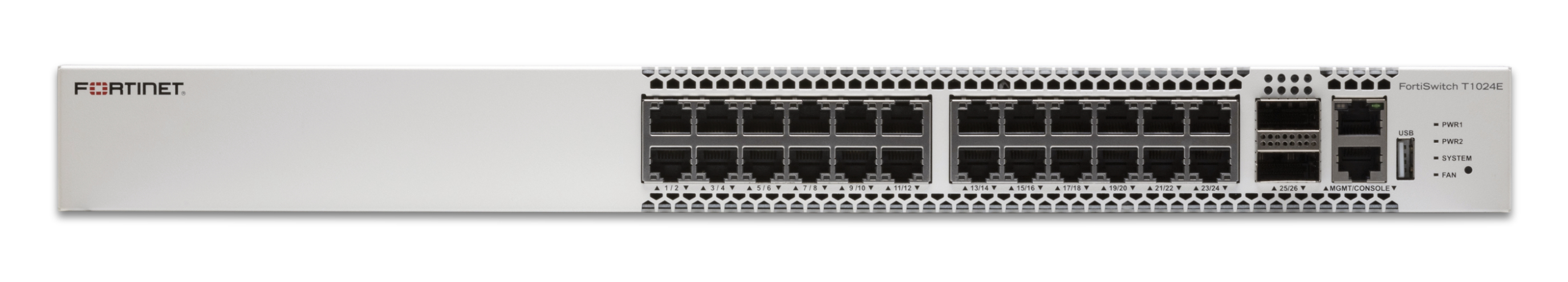

FortiSwitch-T1024E   Neueste Hardware Generation

Switching Throughput Total Network Interfaces
880 Gbps 24x 1G/2.5G/5G/10GBASE-T ports and 2x 100GE QSFP28 ports

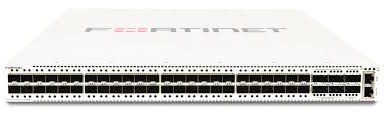

FortiSwitch-1048E   Neueste Hardware Generation

Switching Throughput Total Network Interfaces
1760 Gbps 48 x GE/10GE SFP+ ports and 6 x 40GE QSFP+ ports or 4x 100GE QSDP28 ports

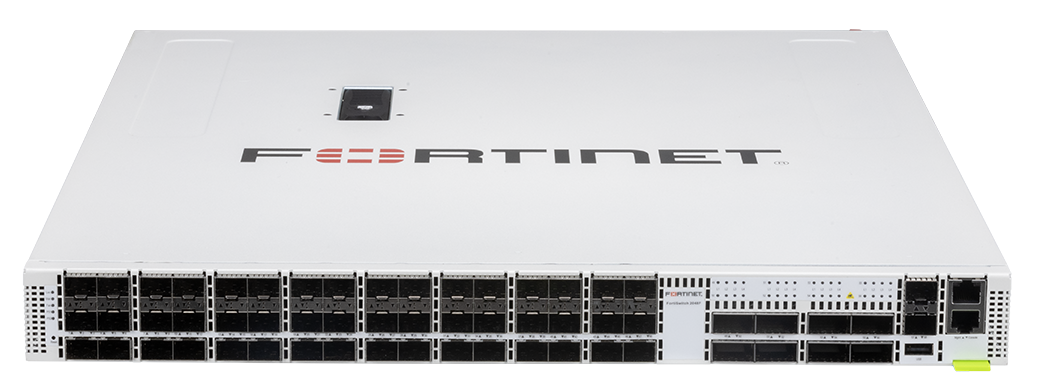

FortiSwitch-2048F   Neueste Hardware Generation

Switching Throughput Total Network Interfaces
4000 Gbps 48x 1GE/10GE/25GE SFP28 ports, 2x 1GE/10GE SFP+ ports, 8x 40GE / 100GE QSFP28 ports

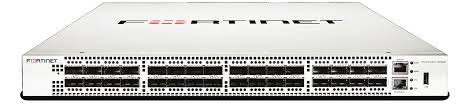

FortiSwitch-3032E   Neueste Hardware Generation

Switching Throughput Total Network Interfaces
6400 Gbps 32 x 40GE / 100GE QSFP+ / QSFP28 ports
Rugged Switches

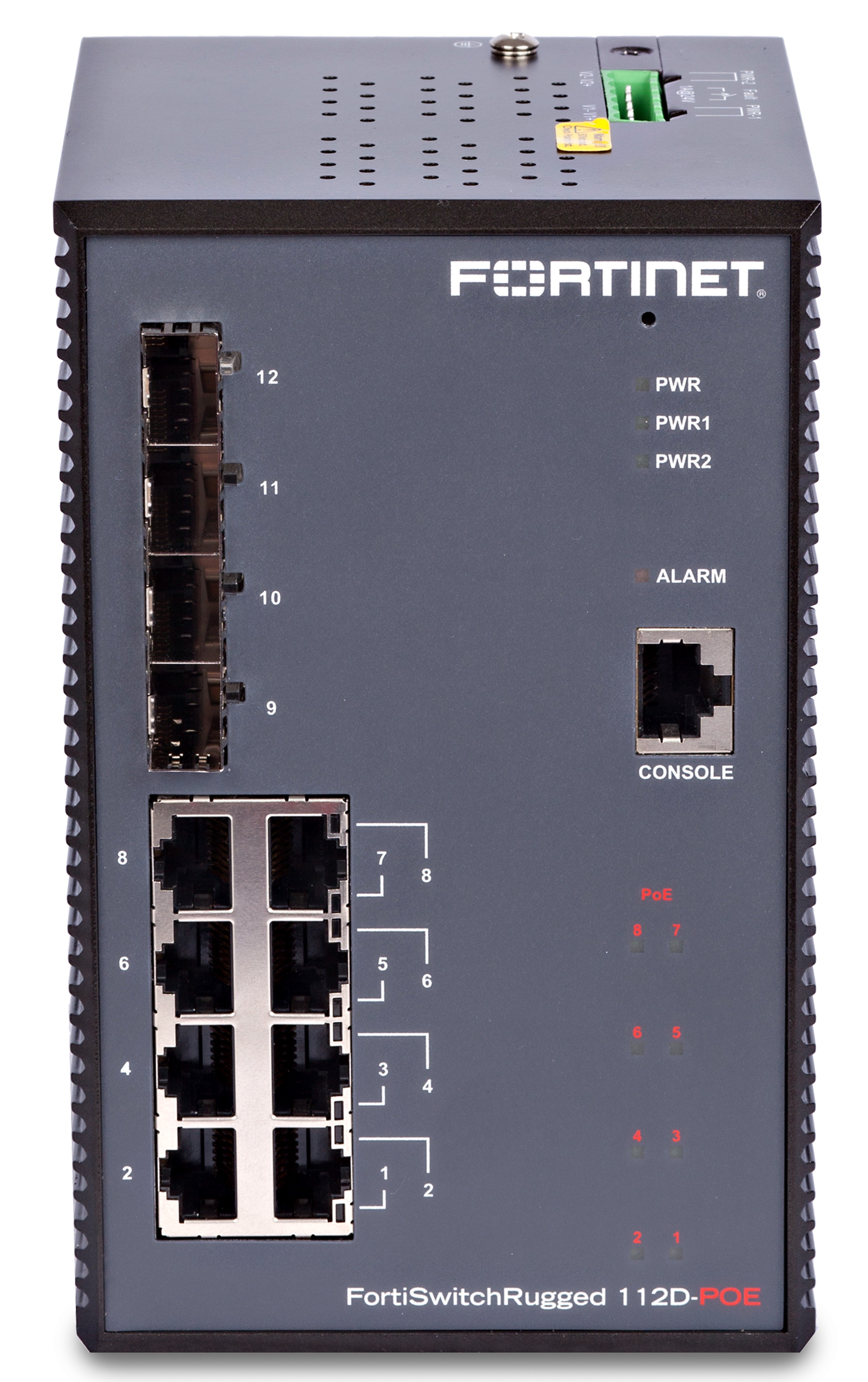

FortiSwitch-Rugged-112D-POE

Switching Throughput Total Network Interfaces POE Ports Powerbudget
24 Gbps 8x GERJ45 ports and 4x GESFP slots 8 bis 240 Watt

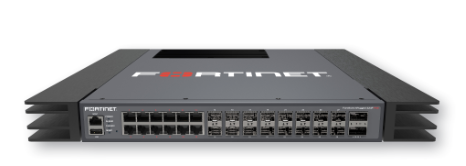

FortiSwitch-Rugged-424F-POE

Switching Throughput Total Network Interfaces POE Ports Powerbudget
360 Gbps 12x 1GE / 2.5GE RJ45, 12x 1GE / 2.5GE SFP, 4x 10G SFP+, 2x 40G QSFP+ 12 bis 421 Watt
